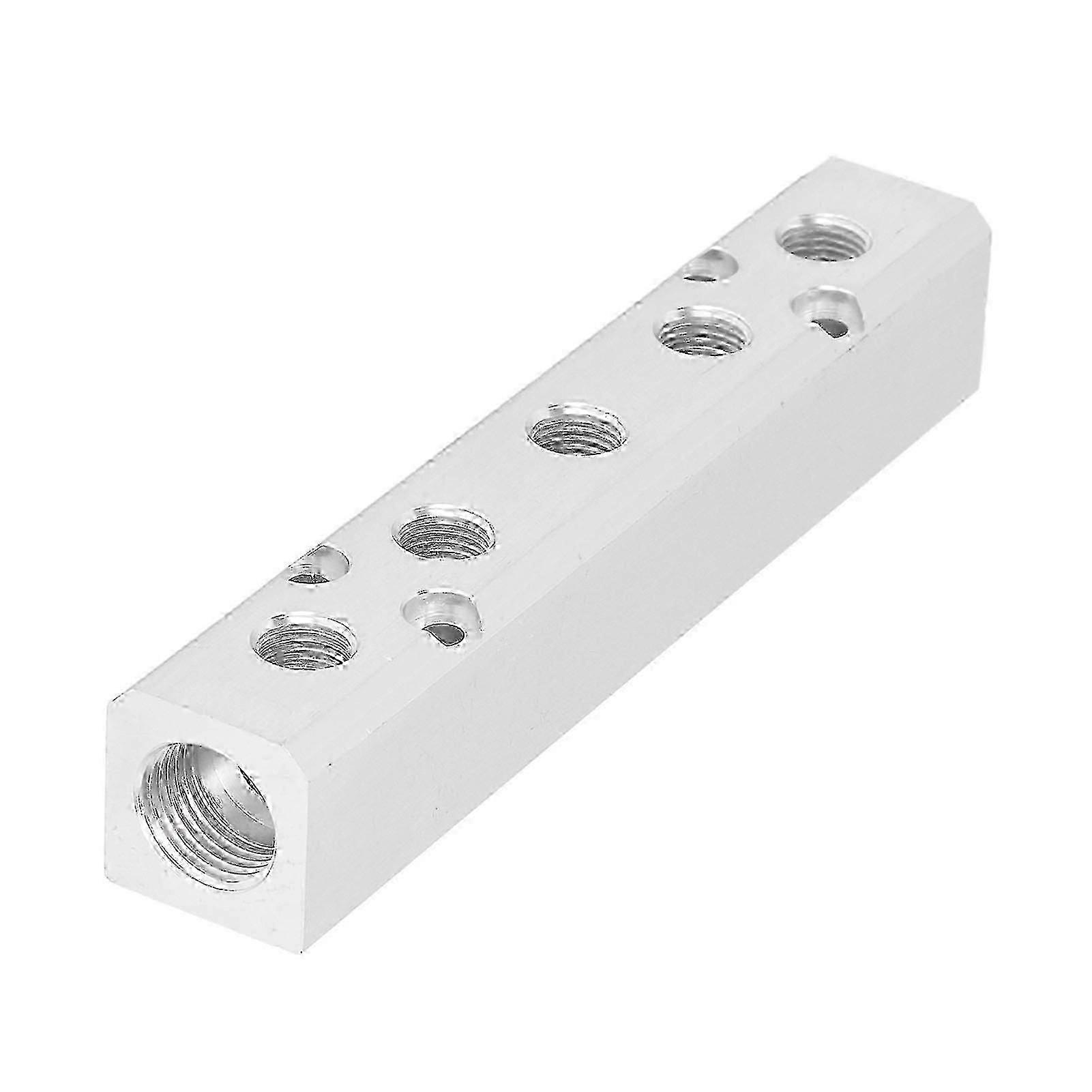

G1/2 Input And G1/4 Output Pneumatic Manifold With Air Distribution Block And Splitter 30x30mm Sy30025f Connector

€ 48,95
GRATIS verzending

G1/2 Input And G1/4 Output Pneumatic Manifold With Air Distribution Block And Splitter 30x30mm Sy30025f Connector

  • Merk: Unbranded
Verkocht door:

G1/2 Input And G1/4 Output Pneumatic Manifold With Air Distribution Block And Splitter 30x30mm Sy30025f Connector

  • Merk: Unbranded

€ 48,95

Bespaar € 45,05 (47%)

Adviesprijs

€ 94,00
Op voorraad
GRATIS verzending
Verkocht door:

€ 48,95

Bespaar € 45,05 (47%)

Adviesprijs

€ 94,00
Op voorraad
GRATIS verzending

We accepteren de volgende betalingsmethoden

Beschrijving

Feature:1. CORROSION RESISTANT: Made of good quality aluminum material, corrosion resistant, no rust, with good strength2. GOOD AIR TIGHTNESS: Pneumatic manifold air distribution block is easy to install, no air leakage, possess good air tightness3. WIDELY USED IN ENGINEERING PROJECTS: Widely used in engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering4. HIGH PRESSURE RESISTANCE: Working pressure from 0~0.9Mpa(0~0.92kfg/cm), pressure resistance is 1.0MPA (10kgf/cm), possess high pressure resistance5. FOR AIR PUMPS: Air coupler fast connector is used for compressors, air pumps and some machines, etc., very practicalSpecification:Item Type: Pneumatic Manifold Air Distribution BlockMaterial: AluminumPressure Resistance: 1.0MPA(10kgf/cm)Working Pressure: 0~0.9Mpa(0~0.92kfg/cm)Adaptation Temperature: 0~60ModelTotal Length(approx.)Positions/HolesLength x Width(approx.)Main Air PipeBranchBranch Center Hole DiameterMounting Hole DiameterVertical Mounting Hole Center SpacingHorizontal Mounting Hole Center SpacingSY30-02-3F106mm / 4.17in3 Position 5 hole30 x 30mm / 1.18 x 1.18inG1/2 (approx.20mm / 0.79in)G1/4 (approx. 12mm / 0.47in)Approx.32mm / 1.26inApprox.5.2mm / 0.2inApprox.20.5mm / 0.81inApprox.32mm / 1.26inSY30-02-4F138mm / 5.43in4 Position 6 holeApprox.64mm / 2.52inSY30-02-5F170mm / 6.69in5 Position 7 holeApprox.96mm / 3.78in.Package List:1 x Pneumatic Manifold Air Distribution BlockNote:1. Do not unplug and insert the air pipe frequently during the use of the connector, which will affect the service life of the connector and air pipe.2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage.3. When pulling out the air pipe, first confirm that there is no pressure in the tube, press the end cap of the joint to the end and pull out the air pipe.
  • Fruugo-ID: 428085022-899433474
  • EAN: 8753655216013

Productveiligheidsinformatie

Raadpleeg de onderstaande productveiligheidsinformatie die specifiek is voor dit product

De volgende informatie wordt verstrekt door de onafhankelijke externe detailhandelaar die dit product verkoopt.

Productveiligheidslabels

CE Mark
Veiligheidswaarschuwingen: Not suitable for children under 36 months
Ingrediënten: other
