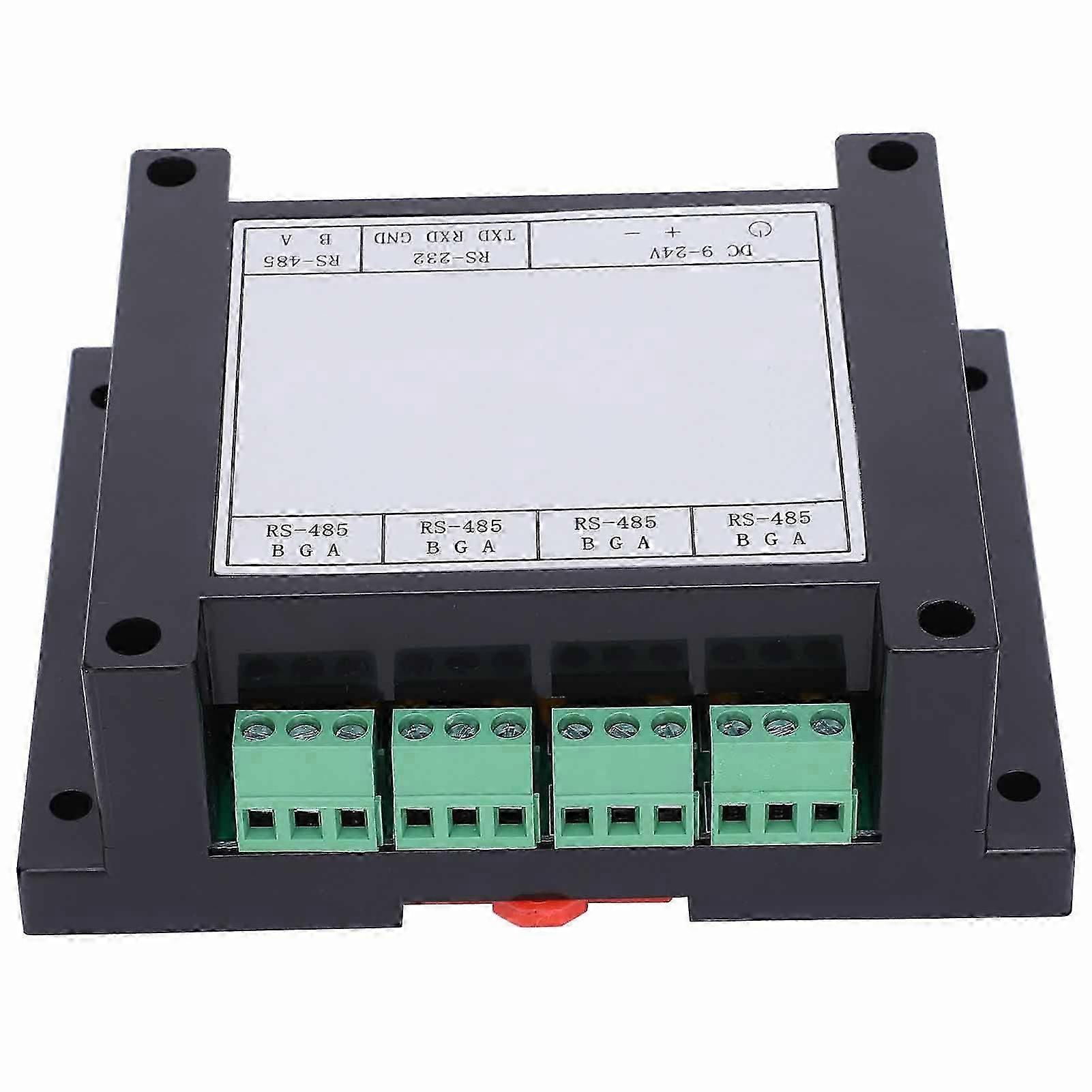

Features Built-in DC/DC Isolated Power Supply Module: The hub is a built-in DC/DC isolated power supply module to realize electrical isolation between ports. Data flow automatic control technology, automatically distinguish and control the direction of data transmission. Industrial-grade Design: 4-way RS485 hub is industrial-grade design, complete communication isolation, stable performance, transmission rate up to 115.2Kbps. Multiple protections: The repeaters has multiple protection measures, plus and minus 15KV ESD protection, 600W dual-channel TVS protection, and 2.5KV communication isolation. Power supply 9-24VDC wide range, with anti-reverse protection. Support Multi-Machine Communication: HUB sharer supports multi-machine communication, each channel can connect up to 128 nodes, and the longest transmission distance is 2500 meters. Note: The hub sharer splitter device is suitable for longterm stable operation under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device! Specification: Item Type: Repeater Compatibility: Compatible with RS-232, RS-485TIA/EIA standards Working Voltage: DC: 9-24V Rated Power: 0.5-1.2W Input Interface: 1 RS-232/1 RS-485 Output Interface: 4 RS-485 Load Capacity: 128 nodes per interface Communication Distance: 2500 meters shielded wire or twisted pair wire per interface Communication Rate: 300bps-115.2Kbps Installation Method: 35mm rail installation, 4-hole installation on the back plate Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in Working Environment: -30 to 70 relative humidity>95%RH Wiring Notes: 1. 485 communication line must use shielded twisted pair, preferably multiple strands for spare, the longest is not more than 2500 meters. 2. The wiring should be as far away as possible from high-voltage wires, not parallel to power lines, and not to be bundled together. 3. 485 bus must be a hand-in-hand bus structure, and resolutely eliminate star connection and bifurcation connection. 4. If there are more than 30 controllers or the cable length is greater than 500 meters, it is recommended to use a 485 repeater. 5. The AC-powered equipment and the chassis must be grounded and well grounded. 6. Connect the GND ground of all 485 devices with shielded wires. Requirements For Wire Selection Using RS-485 Bus For Communication: Use 2-core shielded twisted pair cable Copper, wire diameter 0.50.75 square millimeter, Impedance 3888/km, Capacitive resistance 3050nF/km, 2-core shielded twisted-pair cable with a twisting distance of 20 mm (if the line distance is not more than 500 meters, the line standard can be appropriately reduced, but it must be a twisted pair) Package List: 1 x Repeater Package List 1 x Repeater
