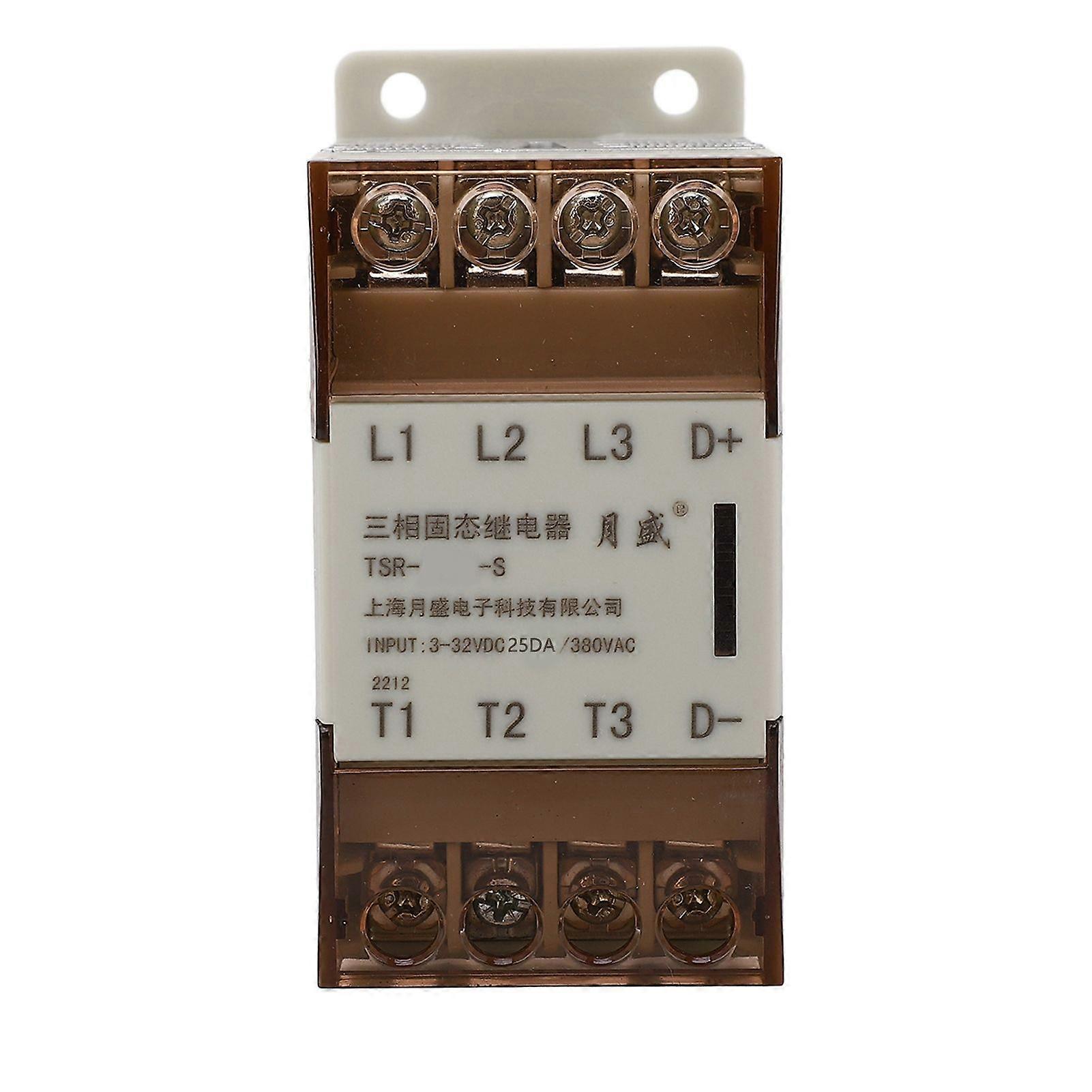

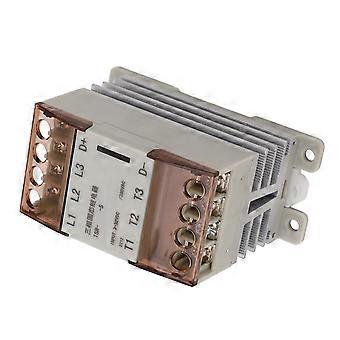

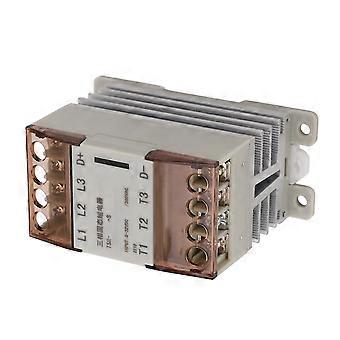

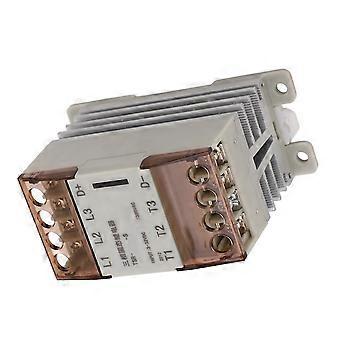

Feature:1. RELAY STRUCTURE: The 3 phase relay is a better contactless switch composed of shell, electronic circuit board, heat dissipation base plate, thyristor and photoelectricity.2. VOLTAGE RANGE: 3-32VDC control voltage, 24-380VAC load voltage, to avoid introducing a large high voltage circuits to the console, suitable for more equipment control.3. FAST SWITCHING: The opening time is 10ms, fast switching speed, can be used in high frequency applications, applicable to most temperature controllers and switch consoles.4. HIGH PERFORMANCE: The solid state relay has the features of non sparking, noiseless, fast speed, corrosion resistance, shockproof, high reliability and electromagnetic compatibility.5. FOR AUTO CONTROL: Solid state relay is suitable for automatic process control application, photoelectric isolation between control circuit and load circuit, has good compatibility.6. DURABLE MATERIAL: The relay shell is made of flame retardant engineering plastic, corrosion and wear resistant, the aluminum alloy base plate improves heat dissipation efficiency.7. WIDE APPLICATION: Widely used in computer peripheral interface equipment, numerical control machinery, industrial automation devices, signal lamps, heating equipment, copiers, etc.Specification:Item Type: Solid State RelayControl Voltage: 3-32VDCControl Current: 10MALoad Voltage: 24-380VACHeat Dissipation Mode: Built in RadiatorInstallation Mode: Guide Rail Horizontal MountingOn Off Time: 10MSOn State Voltage Drop: 1.5V.Package List:1 x Solid State RelayNote:1. When selecting products, different margins should be reserved for current grades according to the nature of the load. (For resistive load, it can be selected according to 2‑3 times of load current. For inductive or capacitive load, it can be selected according to 3‑5 times of load current, and for motor more than 5 times.)2. According to the relationship between load current and ambient temperature, when the ambient temperature is high or the heat dissipation condition is poor. The current capacity should be increased. In order to prevent load short circuit during use, it is required to connect the corresponding quick disconnect switch or quick fuse in series in the load circuit.3. In case of inductive load, the voltage sensitive resistor shall be connected at the output end in parallel to prevent the thyristor from being damaged in case of overvoltage. Selection of varistor (MOV): 430‑470V at 240V, 680‑750V at 440V.4. During installation, it is required that the contact surface between the radiator and the product must be flat and smooth, and the surface should be evenly coated with a layer of thermal conductive silicone grease. Finally, the screws with flat washers and spring washers should be symmetrically tightened and fixed.5. When the solid state relay works and stops for the first time, it should take advantage of its remaining temperature to tighten the fixing screws again, so that the solid state relay base plate and the radiator surface can be in close contact, and achieve the ideal heat dissipation effect.6. The nominal current of different models of solid state relays is the nominal current when the ambient temperature is 40, so the heat dissipation should be sufficient!
